Braber WCX5

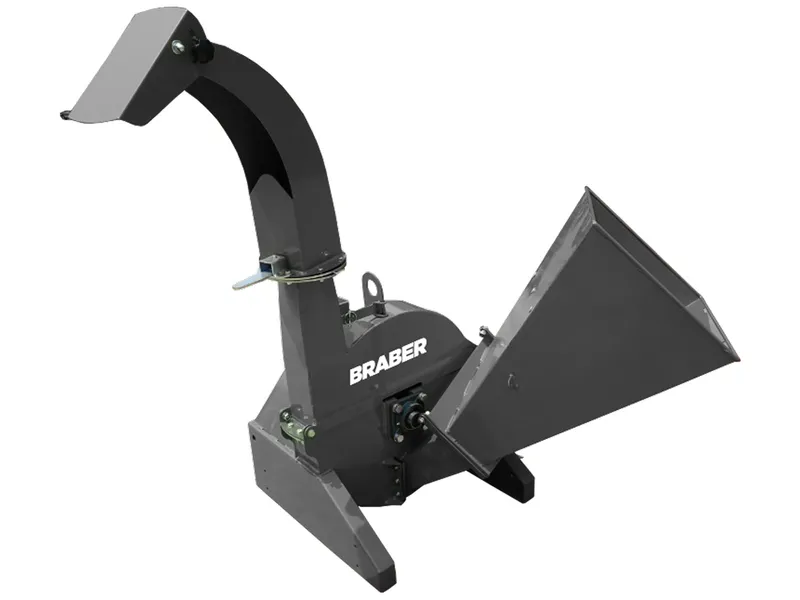

The Braber BE-WCX5 is a Category 1 three-point wood chipper for tractors in the 18 to 45 HP range. It handles branches up to 5 inches in diameter and runs from a 540 to 1,000 RPM PTO through a shear-pin yoke.

A 24-3/4-inch flywheel weighing 125 pounds carries four rotating knives past one fixed knife. The 5 x 10-inch housing opening accepts larger and irregular branches, while service access makes the flywheel and knives easier to inspect and maintain.

The discharge chute rotates 270 degrees and has a multi-position angle so chips can be directed into a pile or trailer. The chipper weighs 485 pounds and measures 43 inches long, 55 inches wide, and 66 inches high.
