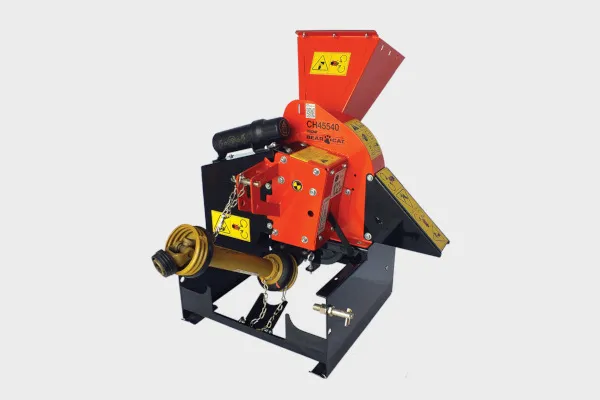

Echo CH45540

Storm season leaves you with piles of downed limbs and brush, and hauling it all off gets old fast. The CH45540 turns the tractor you already own into a wood chipper, so you can clear that mess right where it falls and turn it into mulch for your own property.

This is a PTO-driven implement — it runs off your tractor's rear power take-off (the splined shaft that transfers engine power to the implement) through a Category 1 three-point hitch. There's no separate engine to service and no gas can to keep filled. Hook it up, and your tractor does the work.

A lot of what you're chipping around here is green, wet, and stringy — the kind of material that wraps and clogs cheaper machines. The cantilever-mounted rotor is designed to cut down on that wrapping, so you spend more time chipping and less time clearing jams. The 14-inch, 49-lb balanced rotor spins at 2,000 RPM and carries two reversible, heat-treated steel blades. When one edge dulls, you flip the blade before you buy new ones.

The whole machine is built from heavy-duty 7-gauge steel and driven by a double-banded belt for solid power transfer. It takes branches up to 4.5 inches thick through a gravity self-feed hopper — drop the limb in and let it pull itself through.

Ideal For:

• Property owners handling their own storm and windfall cleanup
• Small-acreage farms and rural homesteads with regular brush to clear
• Landscape contractors already running a compact tractor
• Anyone turning limb piles into usable mulch instead of hauling them off

Key Specifications:

• Chipping capacity: up to 4.5 inches
• Rotor: cantilevered, 14 in. x 1 in., 49 lbs, 2,000 RPM
• Blades: two reversible, heat-treated steel; four-sided adjustable anvil
• Drive: double-banded belt
• Feed system: gravity / self-feed
• Feed opening: 4.5 in. x 5 in.
• Construction: 7-gauge steel
• Hitch: Category 1 three-point
• PTO horsepower required: 15–28 HP (verify — see note)
• Weight: 361 lbs
