Note: The Kioti CK2620 now replaces the CK2610. While some cosmetic changes were made, the mechanical components of the tractor remain mostly unchanged.

The Kioti CK2610 and Kubota L2501 compact utility tractors represent a new subcategory of compact tractors. These tractors share the same chassis size as traditional 30-35 horsepower compact utility tractors but, with engines under 25 horsepower, they lack much of the Tier 4 emissions equipment required in larger models.

Both the CK2610 and L2501 models are fairly new to the market and are positioned to meet demand for compact tractors that are slightly larger than subcompact models but priced well below 30+ horsepower models in their respective lines. These 25-horsepower compact tractors are versatile and large enough to safely operate 5′ implements, making them ideal for property owners and small farm operators.

While both models compete head-to-head, the Kioti CK2610 has several key advantages over the Kubota L2501.

Key Specifications Comparison

Feature	Kioti CK2610	Kubota L2501	Advantage
Hydraulic Flow	11.7 GPM	8.3 GPM	Kioti (+34%) - Faster loader cycles, more steering power, better for attachments
3-Point Lift Capacity	1,631 lbs @ 24"	1,389 lbs	Kioti (+242 lbs) - Safely handle heavier implements
Transmission	9×3	8×4	Kioti - Left fender controls vs. platform-mounted, better operator comfort
Power Steering	Hydrostatic (cylinder-coupled)	Integrated linkage (gearbox)	Kioti - Fewer parts, less maintenance, less susceptible to damage
Loader Control	Right fender integrated	Mounted on loader	Kioti - Within easy reach vs. requiring forward reach
Loader Lift Capacity	1,835 lbs @ pivot pins	1,131 lbs	Kioti (+704 lbs, +62%)
Loader Breakout Force	3,464 lbs	Not specified	Kioti - Superior breaking power for tough jobs

Hydraulic Flow: 34% More Capacity

The Kioti CK2610's superior hydraulic flow rating means faster loader cycle times, more steering power when performing loader work, and extra capacity for attachments such as a grapple or hydraulic top-and-tilt kits. If you're handling heavy-duty loader work or frequently using hydraulic attachments, the Kioti CK2610 will save you time and effort.

3-Point Hitch Lift Capacity

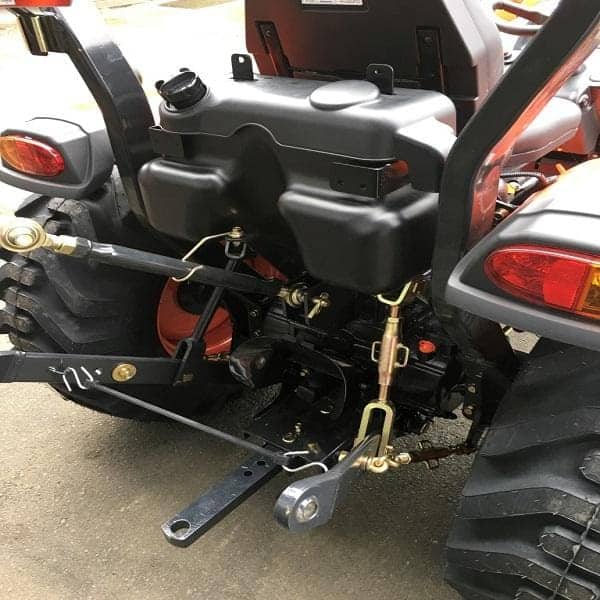

Close-up of Kioti CK2610 3-point hitch assembly and lift arms.

The 242 lb. advantage of the CK2610 may not seem like much, but for a compact tractor, this difference can mean the ability to handle heavier implements safely without overloading the hitch.

Transmission Design and Operator Comfort

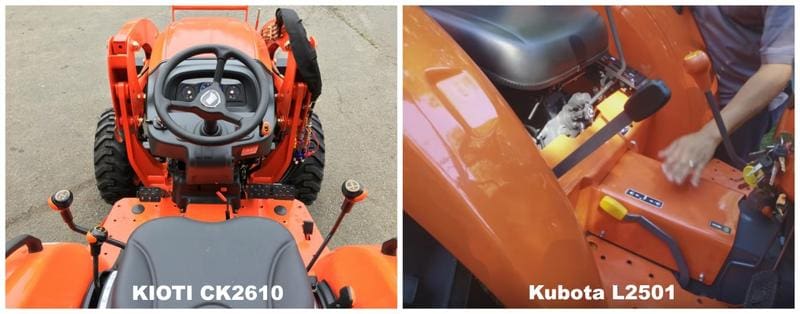

Side-by-side view of Kioti CK2610 and Kubota L2501 tractor operator stations, showing steering wheel and gear shift placement.

At first glance, the Kubota's 8 forward and 4 reverse gears might appear to have an advantage over the Kioti's 9×3 transmission. However, the design and placement of the gear shift lever on the Kubota significantly impact usability. The Kioti CK2610's operator-friendly design with controls on the left fender (rather than between your legs) makes gear selection smoother and more convenient.

Power Steering System Reliability

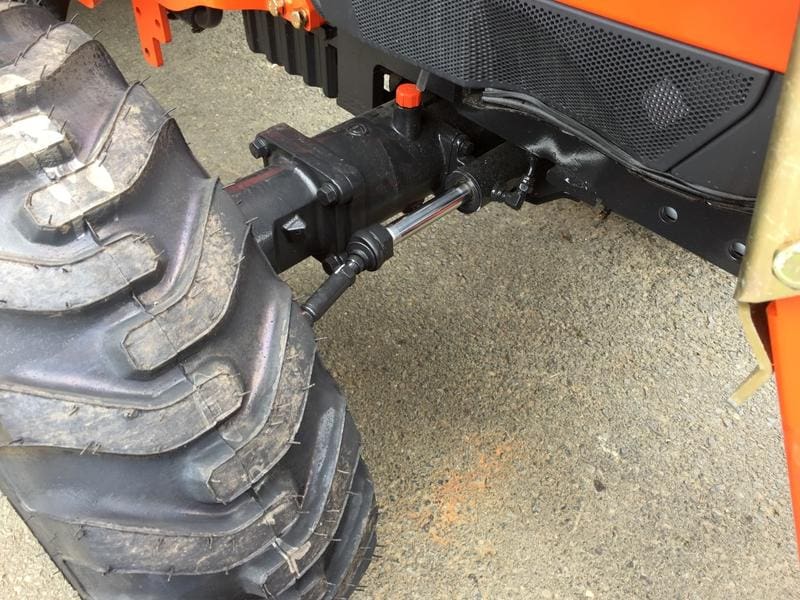

The Kioti CK2610 uses a hydrostatic power steering system with hydraulic cylinders directly coupled to the steering knuckles. This design is robust, efficient, performs well in all conditions, and has fewer moving parts to maintain.

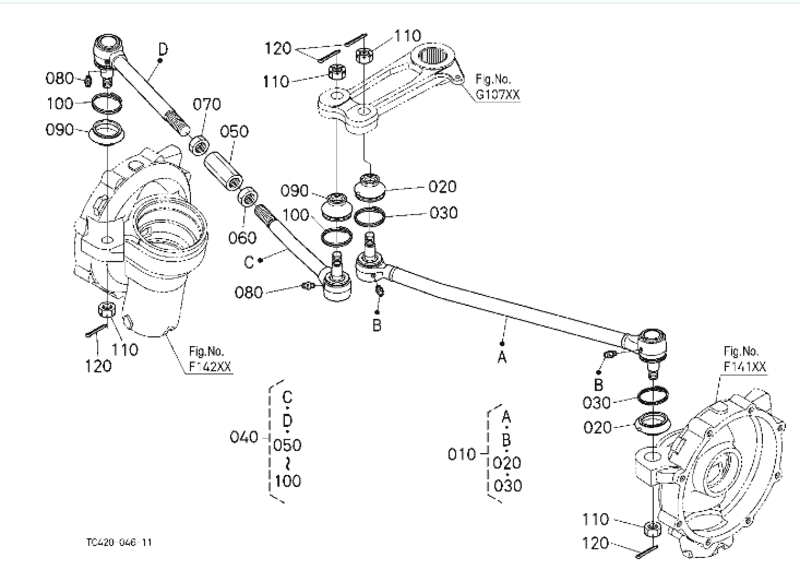

Steering component schematic showing gearbox and shaft coections

Diagram of a power steering system with multiple linkages and joints

The Kubota L2501 uses an "integrated type power steering" system with multiple shafts and joints connected to a steering gearbox. This design has two significant weaknesses:

1. The steering box may require frequent adjustment and could eventually require a rebuild. 2. The steering linkage, positioned in front of the axle, is more susceptible to damage in tight spaces or wooded areas.

With its durable and reliable hydrostatic power steering system, the Kioti CK2610 is the clear winner here.

Loader Control Integration

Side-by-side comparison of loader controls on Kioti CK2610 and Kubota L2501

The Kioti CK2610's loader control is integrated into the right fender, placing it within easy reach of the operator. The joystick has a contoured knob that feels natural in hand and allows for effortless operation. In contrast, the Kubota L2501's loader control is mounted on the loader itself, requiring the operator to reach forward, which can be less convenient during extended use.

Loader Lift Capacity and Power

The Kioti CK2610 comes equipped with the KL4030 loader, the same loader used on the larger CK3510 and CK4010 models, providing a significant capacity advantage over the Kubota L2501's LA525 loader. For anyone doing significant loader work, the Kioti CK2610's strength and versatility make it the superior choice.

Conclusion: Why the Kioti CK2610 Wins

While both tractors have their strengths, the Kioti CK2610 outshines the Kubota L2501 in key areas like hydraulic flow, lift capacity, and operator-friendly design. With additional power, smoother controls, and a better warranty, the CK2610 is built to handle tough jobs with ease.

If you’re considering a compact utility tractor, the Kioti CK2620 offers outstanding value and performance. Contact us today to schedule a test drive or learn more about its features!
