You change your tractor's engine oil on schedule. You grease your zerks. You keep an eye on coolant and hydraulic fluid. The tractor is dialed in.

Then one day your rotary cutter locks up. Or your tiller gearbox starts howling. And you're standing there wondering what happened, because you maintained that thing.

Except you didn't. You maintained the tractor. The implement did half the work and got none of the attention.

Your Implements Won't Remind You

Your tractor has an hour meter staring at you every time you climb on. Most people use that to track oil changes, filter swaps, and general service intervals. Your rotary cutter doesn't have one. Neither does your tiller, post hole digger, or finish mower. They just spin and cut and dig until something gives.

Every PTO-driven implement with a gearbox has oil in it, and if you've never checked yours, you're not alone. Most people don't realize it's something that needs attention. We see more preventable implement failures come through the shop than just about anything else, and they almost always come down to two things.

Low or No Oil

Baling twine is the one I see most often. It wraps around the output shaft on a rotary cutter, works its way back toward the gearbox, and destroys the seal. Oil starts weeping out underneath the deck where you never look, because everything still sounds fine. The cutter runs great. Until it doesn't.

By the time you hear something wrong, the gearbox has been running low or dry for weeks. At that point you're not replacing a seal. You're replacing a gearbox.

A two-minute look at the underside of your implement after mowing through a brushy area catches this early. Checking the oil level frequently catches it even earlier.

Contaminated Oil

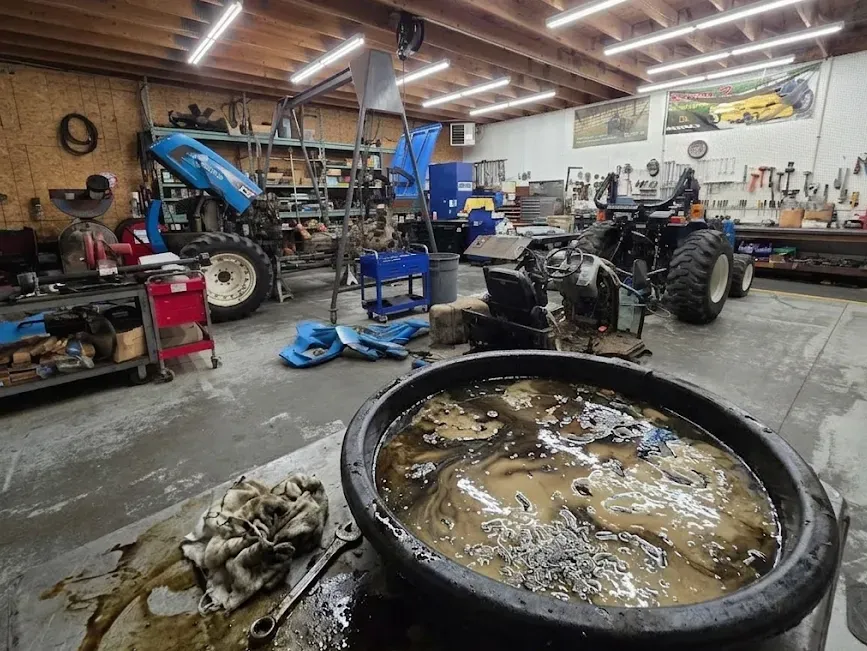

Pull the fill plug on a neglected gearbox sometime. On a healthy implement, it looks like dark gear oil. On one that's been sitting through wet winters or stored outside, it can look like a vanilla milkshake. That's moisture mixed with the gear oil, and it lubricates about as well as an actual milkshake would.

You'd know immediately if your tractor engine oil looked like that. But most people never think to check the implement gearbox.

U-Joints Need Grease Too

Every PTO driveline has u-joints, and they need grease every 8-10 hours of operation. This is one of those things that's easy to miss if you didn't know to look for it. Standard zerks, same grease gun you use on everything else. Two minutes of work that saves you a driveline replacement, or worse, a driveline failure while the implement is running.

Spindle Bearings Are Not the Gearbox

One thing worth mentioning: greasing the spindle bearings on your mower deck is not the same as servicing the gearbox. I see people do one and assume they've covered the other. Different components, different maintenance, different failure modes.

Use the Right Shear Bolts

This one deserves its own section because I've seen it cause real problems.

Shear bolts on a rotary cutter are designed to break. That's their job. When the blade hits a stump or a rock, the shear bolt snaps so the impact doesn't travel up through the gearbox and destroy something expensive.

The factory bolts on most rotary cutters are Grade 2. They're soft on purpose. If you run out and grab Grade 5 bolts from the hardware store because that's what's on the shelf, you've just upgraded the weakest link in the system. Now when something gets hit, the bolt holds and the gearbox takes the shock instead.

Keep the correct grade on hand. They're cheap. Gearboxes are not.

None of This Is Hard or Expensive

That's the frustrating part. Every failure I just described is preventable with a jug of gear oil, a grease gun, and a few minutes of attention. The stuff that prevents this costs almost nothing. The stuff that fixes it after the fact can run hundreds or thousands.

Gearbox Oil

Find the check plug on the side of the gearbox. Remove it. If oil seeps out, you're good. If nothing comes out, you're low. Fill from the top plug until it seeps from the side, then reinstall both.

Most implement gearboxes spec SAE 80W-90 GL-4 or GL-5 gear oil. I run synthetic in most of my implements, and I can often go two seasons before the oil starts looking dirty. With conventional gear oil, you'll probably want to change it annually. Either way, pull the plug at least once a year and look at it. If it's clean, you can leave it. If it's dark or milky, change it.

First season on a new implement, change it early regardless. You want to flush the break-in metal particles out.

U-Joints

Grease every 8-10 hours of operation. Standard zerks, same grease gun you use on everything else. Two minutes.

Annual Once-Over

While you're under there, check rotary cutter blades for chips and wear. Replace missing PTO shields. Check 3-point pins, lynch pins, and stabilizer chains for wear. Loose connections transfer shock into the gearbox and driveline.

The Short Version

Checking your implement gearbox oil takes two minutes and costs nothing. Skipping it costs you a gearbox.

Your tractor has an hour meter to keep you honest. Your implements don't. So put it on the calendar: check the oil regularly, grease the u-joints every 8-10 hours, keep the right shear bolts on hand, and take two minutes to look things over before you put equipment away. That's it.

If something already looks wrong, bring it in or give us a call. We're in Astoria, happy to take a look.

Frequently Asked Questions

How often should I change gearbox oil in my rotary cutter?

Pull the plug and look at it at least once a year. If you're running synthetic, you may get two seasons out of a fill. With conventional gear oil, annual changes are a good habit. If the oil looks milky or smells off, change it immediately regardless. And always change it early in the first season on a new implement to flush break-in particles.

What does milky implement gearbox oil mean?

Moisture contamination. The oil won't lubricate properly. Change it immediately, inspect your seals, and figure out where the water is getting in.

How do I check the oil level on an implement gearbox?

Find the check plug on the side. Remove it. Oil seeps out, you're good. Nothing comes out, add through the top plug until it does.

Why do shear bolts matter on a rotary cutter?

Shear bolts are designed to be the weakest link. They break so the gearbox doesn't. If you replace factory Grade 2 bolts with Grade 5 from the hardware store, the bolt holds and the gearbox absorbs the impact instead. Always keep the correct grade on hand.

How often should I grease PTO driveline u-joints?

Every 8-10 hours of operation. More often in wet or heavy conditions. Standard grease zerks, same gun you already use.

Do I need to service the gearbox even if it sounds fine?

Yes. By the time it makes noise, the damage is done. Checking the level takes two minutes and costs nothing.
